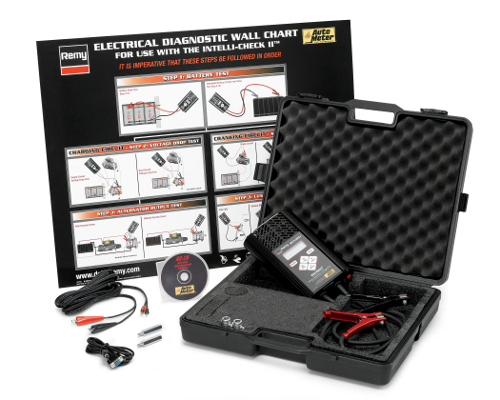

Auto Meter BCT-200J Kit for PC Use (Includes Wall Chart)

Auto Meter BCT-200J Kit for PC Use (Includes Wall Chart) Enlarge Photo
Applications:
6V & 12V Commercial Starting Batteries, 12V & 24V Starting and Charging Systems

12 Volt Tests
Battery Check, Load Test, Alternator Stator / Diodes & Regulation Test, and Automated Voltage Drop Test, J1708 Data Bus Communication

24 Volt Tests
Alternator Stator/Diodes & Regulation Test, and Automated Voltage Drop Test, J1708 Data Bus Communication

Battery CCA Range
200 - 1600

Automated Load
120 Amp

Alternator Test
Yes

Stator Diode Test
Yes

Starter Draw Test
V-Drop

External Volt Leads
Yes

Memory
Last 120 Tests

Voltmeter Range
1 - 30 with 0.01 Resolution

Voltage Drop Test
Yes

Cooling
Vented

Digital Display
1" x 2.5" 4 line 16 character

Package
Durable Anodized Extruded Aluminum

Operational Temperature
1 - 120 Degreed F

Operational Humidity
0 - 85%

Language
English or Spanish

Weight
4 lbs.

Internal Battery Type
9 Vdc

J1708 Compatibility
Yes, AC-25 6 to 9 Pin Adapter, AC-26 J1708 Cable

Designed for the heavy-duty industry where accuracy is extremely important. Advanced DPL Technology is used for battery testing, including a battery bank test, to shorten the battery test procedure. Firmware includes Auto Meter's innovative automated-voltage drop test and J1708 information retrieval. This tester stores the last 120 tests which can be retrieved on its LCD display, printed to the optional AC-15 infrared printer, or downloaded to a personal computer with the AC-10 PC adapter cable.

Kit Includes
BCT-200J
AC-10 PC Connector Cable
AC-27 Alternator Adapter Set
AC-24J Blow-Molded Carrying Case
AC-28 BCT-200J PC Application Program
Now Only: $1,018.60
Quantity:

Part Number:

AU_BCT200DTK
Weight lbs:
5.00
